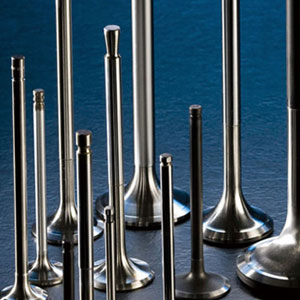

Auto Part Manufacturers and Engine Parts Suppliers The engine valve is steel of JIS SUH3, SUH36 (21-4N), which have feutures of anti-wear, anti corrosion and heat strength, under high temperature use the material constructure still stable. The valve guide is casting iron of FC-25, the precision is up to 0.0015”. both high class quality and precision size of our products fulfill the needs of all famous automobile manufacturers in the world. moreover we can accept for any customers’ design types. |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| C | Si | Mn | P | S | Ni | Cr | Mo | Cu | W | Applied to | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Martensitic Steel | SUH1 | 0.40─ 0.50 |
3.00─ 3.5 |
≦ 0.60 | ≦ 0.030 | ≦ 0.030 | ≦ 0.5 | 7.50─ 9.50 |
In Valve | |||
| SUH11 | 0.45─ 0.55 |
1.00─ 2.00 |
≦ 0.60 | ≦ 0.030 | ≦ 0.030 | ─ | 7.50─ 9.50 |
─ | ─ | ─ | In Valve | |
| SUH3 | 0.30─ 0.45 |
1.80─ 2.50 |
≦ 0.60 | ≦ 0.030 | ≦ 0.030 | ≦ 0.6 | 10.00─ 12.00 |
0.70─ 1.30 |
≦ 0.30 | In Valven Ex Valve Seat Insert |
||
| SUH4 | 0.75─ 0.85 |
1.75─ 2.25 |
0.20─ 0.60 |
≦ 0.030 | ≦ 0.030 | 1.15─ 1.65 |
19.00 20.50 |
─ | ≦ 0.30 | ─ | Ex Valve (Seat Insert) |
|
| Austenitic Steel | SUH31 | 0.30─ 0.45 |
1.50─ 2.50 |
≦ 0.60 | ≦ 0.040 | ≦ 0.030 | 13.00─ 15.00 |
14.00─ 16.00 |
≦ 0.30 | 2.00─ 3.00 |
Ex Valve Seat Insert) |
|
| SUH36 (21-4N) |
0.475─ 0.575 |
≦ 0.25 | 8.00─ 10.00 |
≦ 0.030 | 0.040─ 0.090 |
3.25─ 4.50 |
20.00─ 22.00 |
≦ 0.30 | ─ | Ex Valve | ||
| SUH37 (21-12N) |
0.15─ 0.25 |
0.75─ 1.00 |
1.00─ 1.50 |
≦ 0.025 | ≦ 0.025 | 10.50─ 12.50 |
22.00─ 20.00 |
≦ 0.30 | Ex Valve | |||
| C | Cr | W | Fe | Co | Hardness HRC | |
|---|---|---|---|---|---|---|
| STELLITE #1 | 2.5 | 30.0 | 12.0 | 3.0 Max. | Bal. | 54 |
| STELLITE #6 | 1.0 | 28.0 | 4.0 | 3.0 Max. | Bal. | 44 |
| STELLITE #12 | 1.35 | 29.0 | 8.0 | 2.0 | Bal. | 47 |
JIS SUH3
Ordinary heat-resistance alloy (martensitic) which has magnetism and is widely applied to intake valve for internal combustion engine.
JIS SUH36 (21-4N)
high qualty heat-resistance alloy belonging to austemtic steel (non-magnetic) that is excellent in wear and corrosion resistance under high temperature and applicable to exhaust valve for heavy duty engine use.
STELLITE
cobalt-bast alloy to be welded on valve face (exhaust valve for heavy duty engine) for the purpose of specially improving wear and corrosion resistance under high temperature.

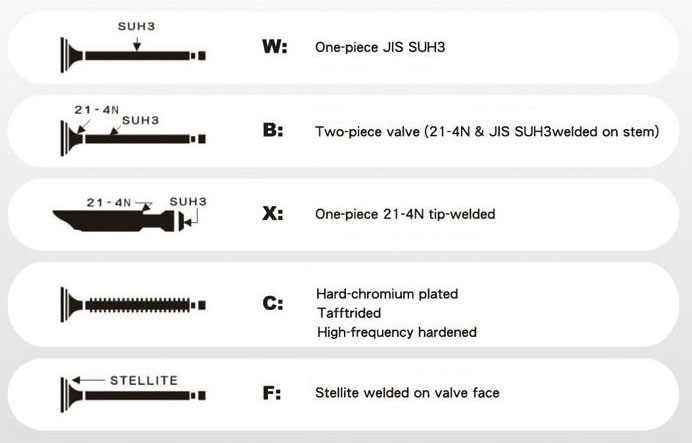

MATERIAL & SPECIFICATION (MS)
